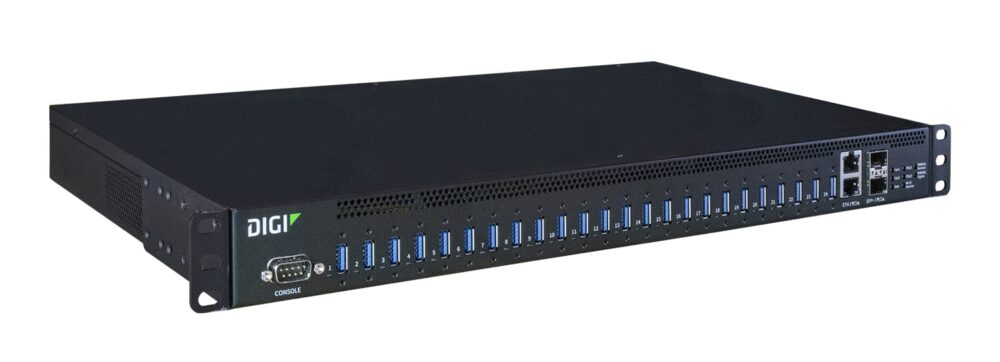

AnywhereUSB 24

(24 Anywhere) DIGI

Excellent for locking hardware on the network

Ideal for connecting USB devices on the network in virtual environments such as VMware, Hper-V

Application without the need of a local computer in kiosks, ATMs, restaurants, production lines or any non-secure area where having a secure local computer or environmental conditions is not suitable.

Creating redundant power systems with dual power sources and dual Ethernet connections (2 LAN ports) 10M/100M/1G/10G Ethernet

It has 24 USB 3.1 Gen 1 ports

(2) SFP+ sockets

2GB RAM, 4GB flash (eMMC)

Dongle access and monitoring via serial devices over one connection

Security features, such as SSL and SNMPv3

Access and monitor input dongles and devices in the TCP / IP network using a browser

Excellent in computer cluster environments

Increased security

Reduced IT support, simple operation, user friendly

SKU5564
Categories
FacebookXPinterestWhatsappTelegramEmailShortlink



CELLULAR
MODULE SUPPORT – (1) Digi CORE modem compliant socket (1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH)
MEMORY 512MB RAM, 4GB flash (eMMC) 2GB RAM, 4GB flash (eMMC) 2GB RAM, 4GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10/100/1000 Mbps (1) RJ-45; 10M/100M/1G/10G Ethernet (2) RJ-45; 10M/100M/1G/10G Ethernet
SFP+ – (1) SFP+ socket (2) SFP+ sockets
CONNECTORS
CONSOLE – (1) DB09M; RS232 DTE
USB (2) USB 3.1 Gen 1 Type A (8) USB 3.1 Gen 1 Type A (24) USB 3.1 Gen 1 Type A
PHYSICAL
DIMENSIONS (L X W X H) 4.6 in x 2.9 in x 1.2 in (118 mm x 74 mm x
30 mm)		 10 in x 6 in x 1.75 in (260mm x 160 mm x
44.45 mm)		 17.75 in x 10 in x 1.75 in (450.85 mm x
255 mm x 44.45 mm)
WEIGHT 0.84 lb (0.38 kg) 3.48 lb (1.58 kg) 10.36 lb (4.7 kg)
STATUS LEDS (2) Ethernet, 2 (x1) USB, power (2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan,
user, (3) future Wi-Fi/WWAN		 2 (x2) Ethernet, 2 (x2) SFP+, 24 (x1) USB,
2 (x1)PSU, 2 (x1) fan, user, (3) future Wi-fi/
WWAN
POWER REQUIREMENTS

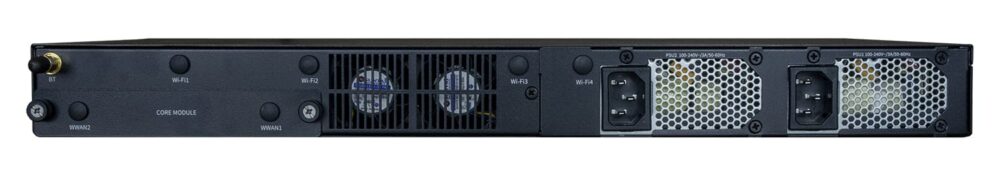

POWER INPUT 5V, 5A max 12V DC, 12A max 100-240V 3A Max (2 supplies for
redundancy)
POWER CONSUMPTION 25 watts max 98.5 watts max 157.7 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 32 °F to +104 °F (0 °C to +40 °C) 32 °F to +131 °F (0 °C to +55 °C) 32 °F to +131 °F (0 °C to +55 °C)
RELATIVE HUMIDITY 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
APPROVALS
BLUETOOTH – Bluetooth BLE 4.2
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950,
EN62368 		UL/EN60950, UL/EN62368 and CSA 22.2 UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22,
EN55024, EN55032		 CE, FCC Part 15 Class B, AS/NZS CISPR 22,
EN55024, EN55032		 CE, FCC Part 15 Class B, AS/NZS CISPR 22,
EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5 years
